Tree View

Tree view is a listing mode for entities that form a parent-child hierarchy: product types, accounts, tasks, skills, company types. The API stores these entities using the Nested Set Model, and the frontend renders them as a collapsible tree instead of a flat table.

It is not a separate component you mount. It is a route. /{locale}/{entity}/treeview renders the same Listing container as the flat listing, and ListingTable switches to tree rendering when the third path segment is treeview.

The Nested Set Model

Each tree entity carries five structural fields from the API:

{
  parent: Entity | null; // direct parent relation
  root: number; // id of the tree's root node
  lvl: number; // depth, root = 0
  lft: number; // left boundary
  rgt: number; // right boundary
}

lft and rgt come from walking the tree once and numbering each node on the way down (lft) and on the way back up (rgt). Everything between a node’s lft and rgt is its descendant. A leaf has rgt - lft = 1.

Sample tree, a fruit classification:

The same tree as the API returns it:

Why this matters for the frontend: any structural change is not local to one node. Inserting a “Berry Sub-Family” under ROSE FAMILY and moving Strawberry and Raspberry into it renumbers lft/rgt across the whole tree (FRUIT becomes 1..24). The backend owns that renumbering. The frontend only tells it what moved, then refetches.

Enabling tree view for an entity

Tree view is driven by the entity’s crud_config in the consumer app:

// src/crud_config/product_types/index.tsx
const implementedInterfaces: { [key: string]: boolean } = {
  treeview: true,
  // ...
};

const actions = [
  // ...
  "priority-up",
  "priority-down",
  "tree-up",
  "tree-down",
];

implementedInterfaces.treeview is passed to the listing as hasTreeView. That does two things:

1. Shows a Tree View button in the listing header (binary tree icon) linking to /{locale}/{entity}/treeview. Visibility also goes through getRoleAccessbility(user?.roles, resource, "tree-view").
2. Adds the tree filter to the filters panel.

The consumer apps ship the route at src/app/[locale]/[entity]/treeview/page.tsx; it renders the same ListingContainer as the flat listing page.

How the table renders

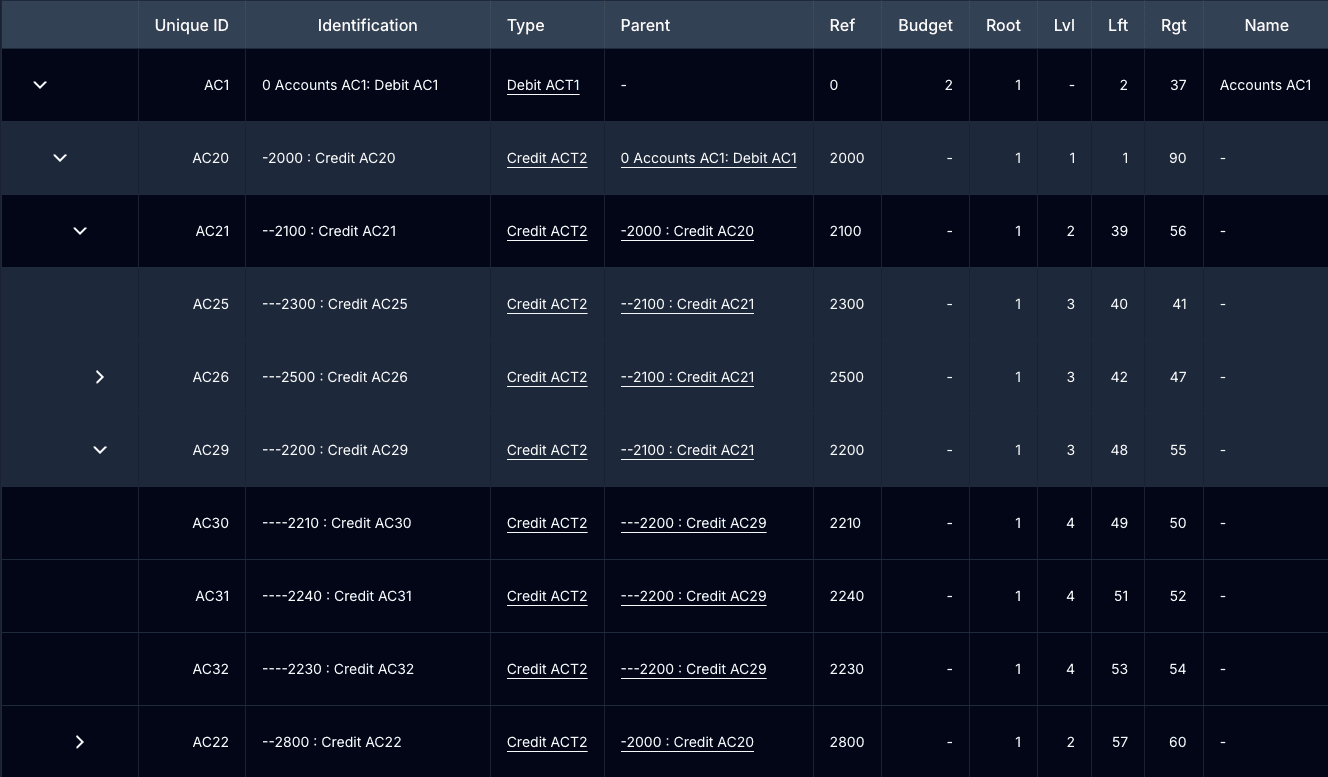

ListingTable builds the hierarchy client-side with useTreeView from the flat page of data (parent for structure, lvl for depth). On top of the normal columns it:

• Prepends an expander column. Rows are indented 20px per level; nodes with children get a chevron that expands or collapses the subtree.
• Renders Expand All and Collapse All buttons above the table.
• Sorts siblings by lft ascending, so the order you see is the order stored in the tree. Nodes without lft fall back to the configured sort field, then id.
• Keeps the expansion state when data refetches (after a move, an inline edit, a filter change), so the tree does not collapse under you.

Deep-linking to a node

The route accepts ?anchor=<id>. The table expands that node’s ancestors, scrolls to the row, and highlights it. Tree Position on the show page links back to the tree this way.

/en/product-type/treeview?anchor=42

Reordering: tree up / tree down

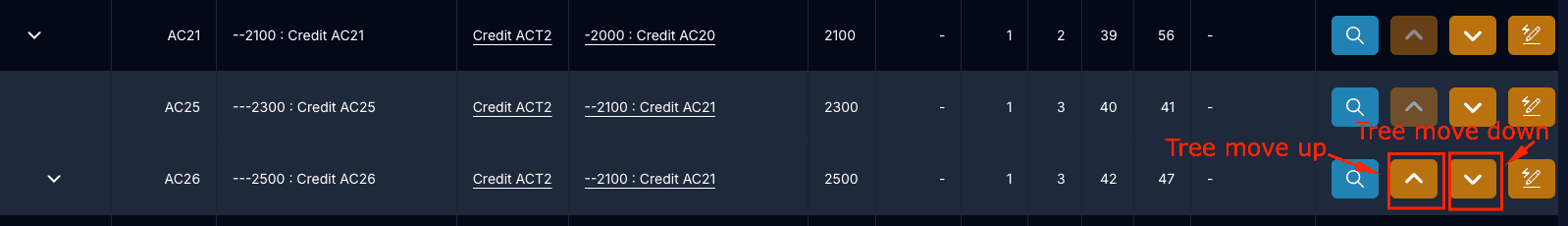

On the treeview route each row shows Tree Up and Tree Down actions. They swap the current node with its adjacent sibling under the same parent:

1. PATCH the current node with the sibling’s lft/rgt.
2. PATCH the sibling with the current node’s lft/rgt.
3. Refetch the listing. The backend recomputes the subtree numbering, so descendants follow their parent and keep their relative order.

The buttons disable at the edges: the first sibling cannot move up, the last cannot move down. Moving never changes the node’s parent or level.

Tree order vs priority order

The same entity can have two orderings, and the buttons look identical (chevron up/down), so know which one you are on:

ListingActions never renders both at once: priority-up/priority-down are hidden on the treeview route, tree-up/tree-down are hidden off it. See ListingActions for the full action key list.

Tree filter

With hasTreeView, the filters panel gains a two-part tree filter (the TreeFilter component): a Group by combobox to pick a node of the entity, and a Hierarchy combobox to pick which part of that node’s subtree to list. It works on both the flat listing and the treeview route.

Each hierarchy option translates to nested-set range filters on the API:

With the fruit sample: selecting ROSE FAMILY (lft 14, rgt 21) with Childs lists Strawberry, Raspberry and Apple, because their lft/rgt all fall inside 14..21.

The filters land in the URL query string like any other listing filter, so a filtered subtree is shareable.

On the show page

Tree entities get a Position section on their detail page showing the root, parent, previous and next sibling with their lvl/lft/rgt values, plus an ancestor breadcrumb. See Tree Position.

Related

• useTreeView builds and manages the client-side tree
• useTreeNeighbors fetches root, siblings and ancestors for one node
• Tree Position show-page section
• ListingActions tree-up / tree-down action keys
• ListingFilters hosts the tree filter
• ListingContext handleTreeMoveItem
